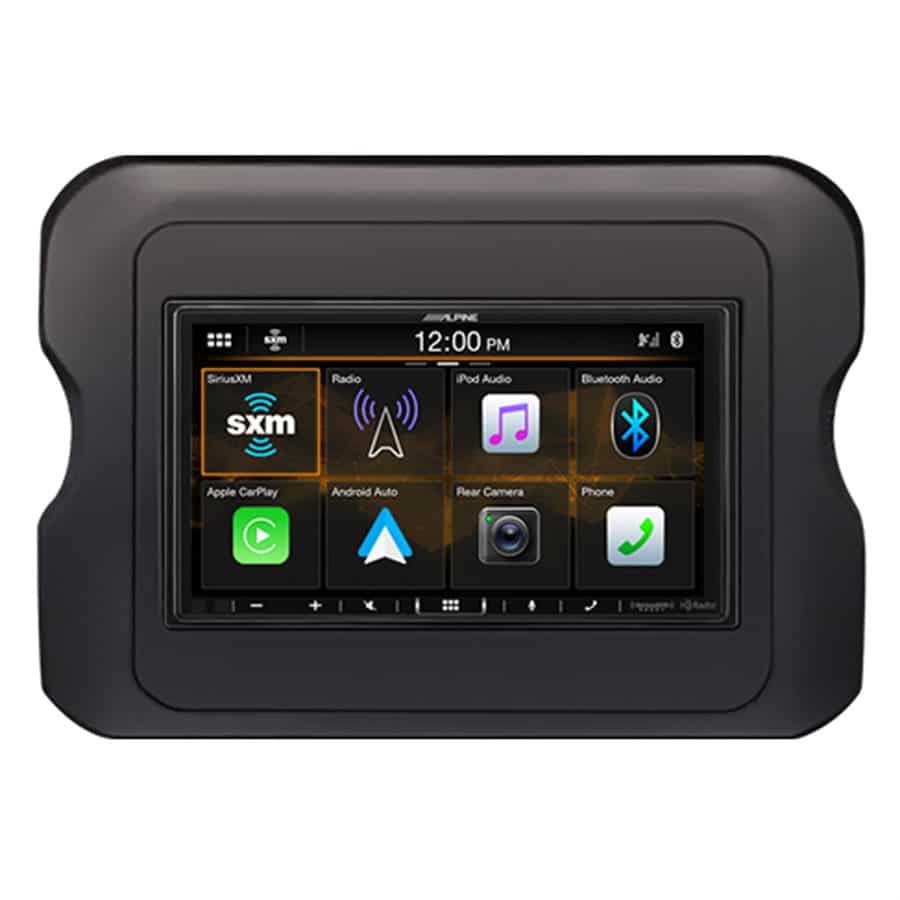

Alpine 7″ Jeep Restyle i407-WRA-JL

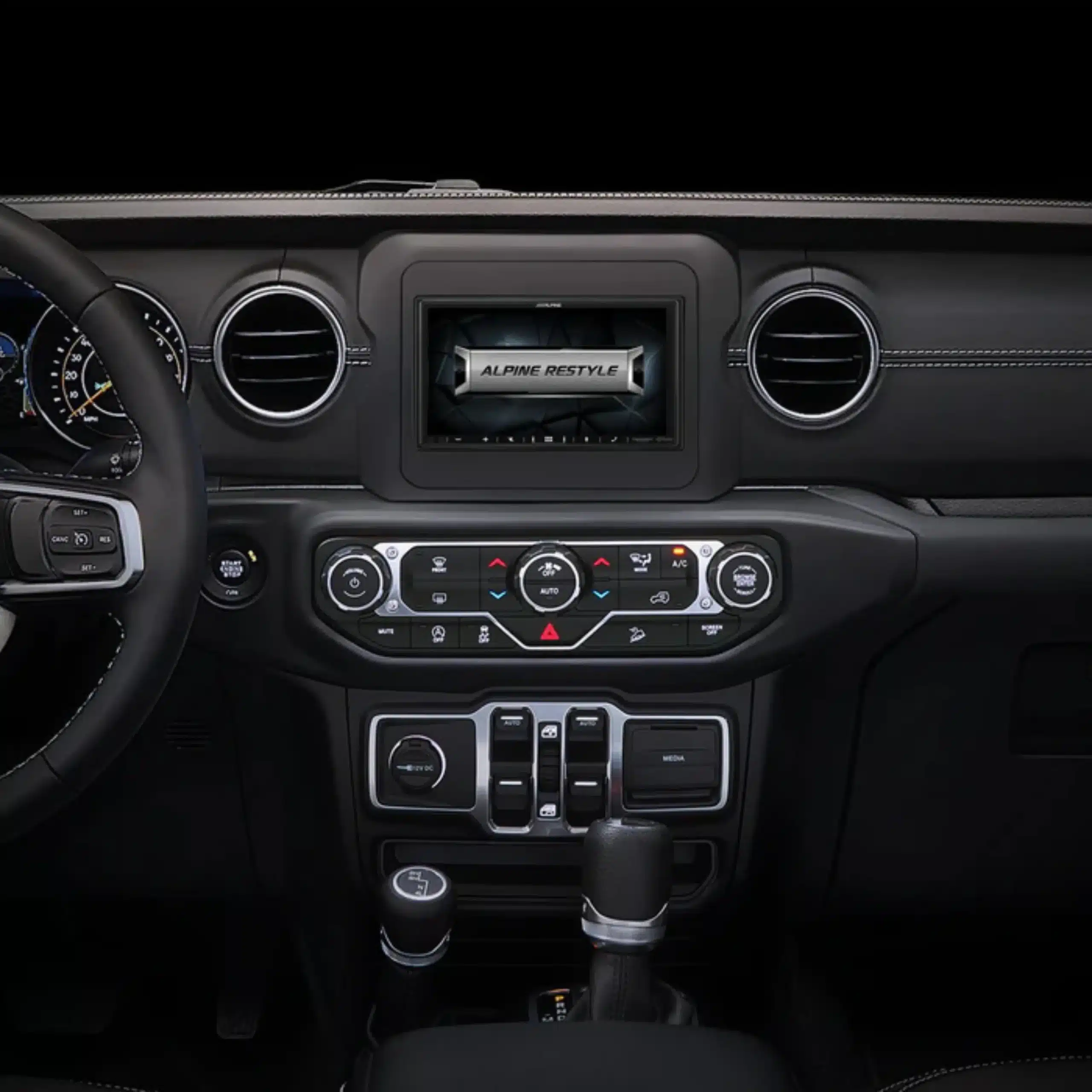

With the Alpine 7″ Jeep Restyle i407-WRA-JK, you can upgrade the technology in your 2018-up Wrangler JL or 2020-up Gladiator JT with a custom-designed dash solution that gives you the latest smartphone and entertainment features, all on an intuitive, 7-inch, capacitive touchscreen display. Jeep®-specific wiring adapters plug directly into your factory setup for Plug-and-Play installation. The Restyle dash kit comes with custom keys that match the lighting, color, shape, and style of the factory keys, and it also lets you keep your climate controls. Buttons below the 6.95″ display offer easy access to commonly used functions, and you’ll even retain your Jeep’s 12-volt ports.

iDataLink Maestro:

• Premium Amplified System: Alpine’s KCX-F200INT interface adapter (sold separately) can be utilized to retain your Jeep’s factory OEM Alpine Premium Amplified System (if factory equipped). The KCX-F200INT mimics the signals from your Jeep’s factory Alpine Premium Amplifier to retain the integrity of your audio system while upgrading the technology on your dash. You’ll also retain the factory premium audio amplifier system’s digital fader, DSP settings, gain adjustment, and speed compensated volume.
• Steering Wheel Controls & Backup Camera: Your Jeep’s factory steering wheel controls will be retained. You get two functions on each button for standard and expanded radio functions. Using the supplied camera interface and external chime speaker, the i407-WRA-JL will also retain your Jeep’s factory backup camera with visual guidelines and audible park assist (if factory equipped).
• Media Interface: The i407-WRA-JL comes with a media interface that consists of an HDMI jack, 3.5mm Aux input, and dual USB-A ports. This media interface replaces your Jeep’s factory USB hub. The media interface’s HDMI jack and 3.5mm Aux input plug into the Alpine receiver’s rear-panel HDMI and Aux Inputs (cables not included) for easier access. One of the USB ports will connect to the black factory microUSB plug (not grey) for charging purposes only, while the other USB port will plug into the Alpine receiver’s rear-panel USB port for easier access, data transmission, and charging.
• Vehicle Settings & Climate Control: Your Jeep’s climate display & controls can be accessed from the Alpine i407-WRA-JL’s 6.95″ touchscreen monitor. You can also access and modify factory OEM vehicle settings through the Alpine receiver’s touchscreen monitor.
• Vehicle Information & Customizable Gauges: The iDataLink Maestro (ALP-MRR) can also integrate with your Jeep’s diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the Alpine receiver’s 6.95″ touchscreen display.
• EVIC (Electronic Vehicle Information Center): If your Jeep is equipped with a secondary EVIC cluster display, the iDataLink Maestro will retain it and display Source Name only.

Notes:

• If equipped, the factory Uconnect system is not retained and will no longer be functional with the new Alpine i407-WRA-JL digital multimedia receiver. However, the i407-WRA-JL does offer Bluetooth, HDMI, and USB connectivity.
• If equipped, the factory SiriusXM tuner is not retained. However, the Alpine i407-WRA-JL does support the SiriusXM SXV300V1 SiriusXM Tuner (sold separately) and you can utilize the factory installed SiriusXM antenna.

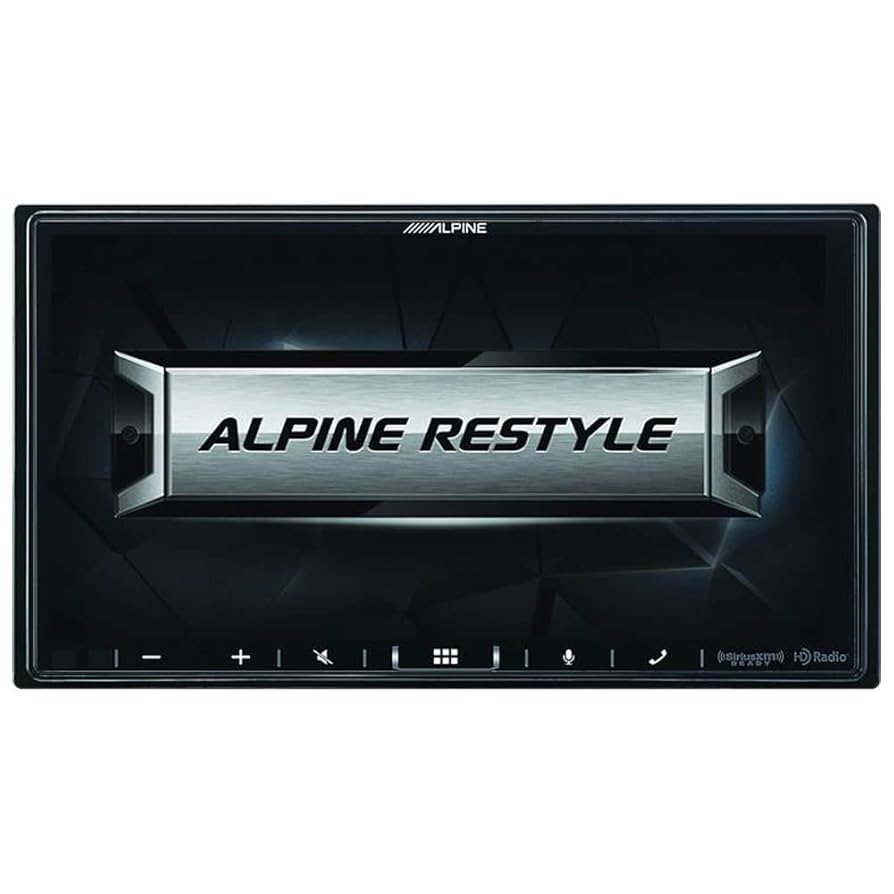

• 7-inch Anti-glare 2-DIN Touchscreen Display
• Premium Quality OEM-fit Dash System
• Plug-and-Play Installation
• Shallow Mount Design (2-6/16″ Depth)
• Customizable User Interface (29 available widgets/apps)
• Customizable Background/Wallpaper
• Works with Apple CarPlay
• The Google Assistant is available on Android Auto
• Bluetooth built-in for hands-free calling and audio streaming
• SiriusXM-Ready (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
• Built-in HD Radio
• HDMI Input
• iDatalink Maestro Connectivity (retains factory controls)
• 2 RCA Camera Inputs
• Rearview Camera Distance Guide Display
• MediaXpander
