Audison Prima Series 6×9″ APX 690

MSRP

$349.99

No online sales – products available in store only

The Audison Prima Series 6×9″ APX 690 are OEM-ready coaxial speakers engineered for tight factory fitment and true hi-fi sound. Audison Prima APX speakers deliver clean, dynamic audio with easy installation in most vehicle locations.

SKU: APX 690 Categories: , Brand:

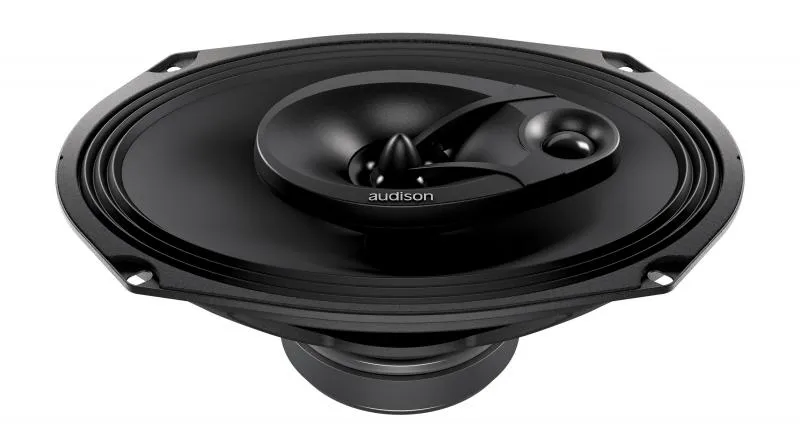

The Audison Prima Series 6×9″ APX 690 are designed to upgrade your factory system without compromise. Built to drop into OEM locations, these speakers combine a high-performance woofer with a concentric tweeter for full-range clarity and punch in one efficient package.

At the core of each APX speaker is a water-repellent paper cone, optimized for fast response and natural sound. A concentric soft dome tweeter is integrated into the center, delivering crisp high frequencies without the need for separate crossovers or custom fabrication. The low-profile design allows for seamless installation behind factory grilles, making them perfect for stealth upgrades in modern vehicles.

Whether you’re replacing tired stock speakers or building a custom system, the Prima APX line brings signature Audison quality with none of the hassle. Just clean sound, wide frequency response, and plug-and-play performance.

Features

  1. Horn Loaded Tweeter: 40 mm horn loaded dome tweeter contributing to its incredible efficiency of up to 96 dB SPL.
  2. Acoustics lens applied to the tweeter, specifically designed to increase dispersion in the high frequency range.
  3. PEI (Polyethylene injected) super tweeter employed to strengthen emission of very high frequency ranges otherwise affected by off-axis positioning common to rear deck installations.
  4. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  5. Pure copper mobile voice coil, wound on Kapton former, for better thermal and mechanical capacity.
  6. TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
  7. Polycotton spider material ensuring reliable performance and linear response to musical transients.
  8. Large motor assembly, optimized with FEM (Finite Element Method) technology, for stable control and linear excursion.
  9. Low carbon content plates for maximum magnetic permeability and high heat dissipation.
  10. Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  11. High current fast-on terminal with temperature resistant plastic cover, protecting it against accidental short circuits.
  12. Developed with the KLIPPEL suite.
Size

Driver Design

Power Handling Peak

Power Handling RMS

Cone Material

Frequency Response
