Audison Prima Series 5.25" APX 5
Audison Prima Series 5.25" APX 5
Audison Prima Series 5.25" APX 5

Audison Prima Series 5.25″ APX 5

MSRP

$249.99

No online sales – products available in store only

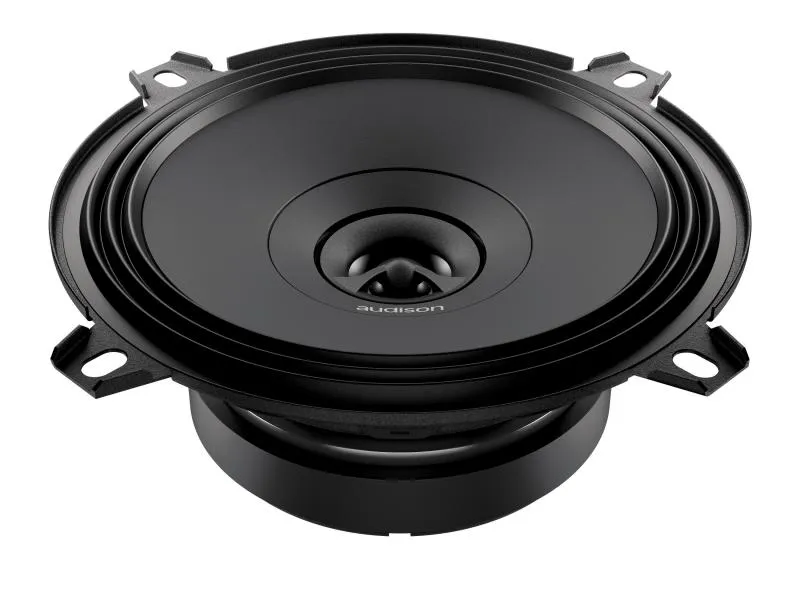

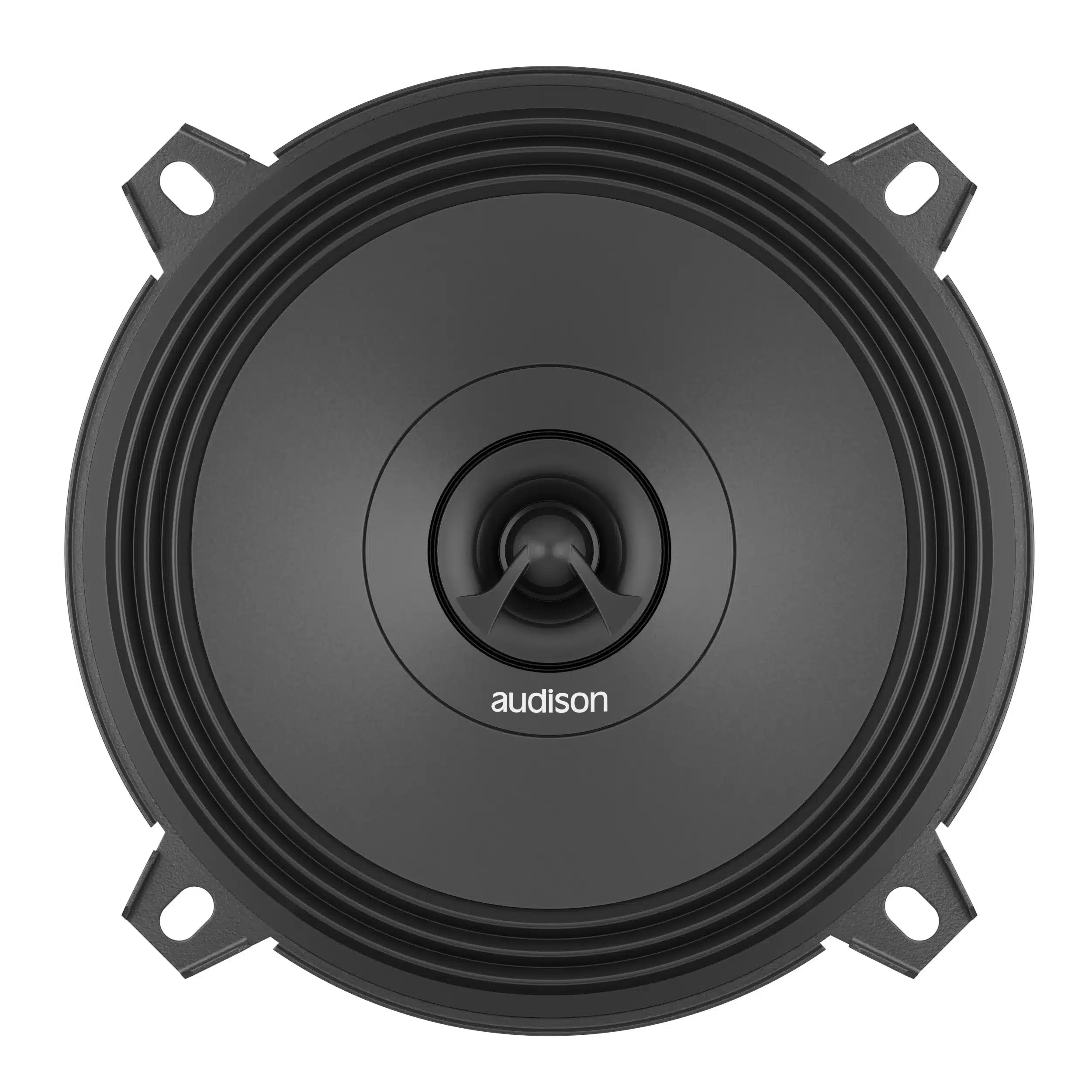

The Audison Prima Series 5.25″ APX 5 are OEM-ready coaxial speakers engineered for tight factory fitment and true hi-fi sound. Audison Prima APX speakers deliver clean, dynamic audio with easy installation in most vehicle locations.

SKU: APX 5 Categories: , Brand:

The Audison Prima Series 5.25″ APX 5 are designed to upgrade your factory system without compromise. Built to drop into OEM locations, these speakers combine a high-performance woofer with a concentric tweeter for full-range clarity and punch in one efficient package.

At the core of each APX speaker is a water-repellent paper cone, optimized for fast response and natural sound. A concentric soft dome tweeter is integrated into the center, delivering crisp high frequencies without the need for separate crossovers or custom fabrication. The low-profile design allows for seamless installation behind factory grilles, making them perfect for stealth upgrades in modern vehicles.

Whether you’re replacing tired stock speakers or building a custom system, the Prima APX line brings signature Audison quality with none of the hassle. Just clean sound, wide frequency response, and plug-and-play performance.

Features

  1. Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
  2. Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
  3. 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  4. Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
  5. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  6. TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
  7. Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  8. High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  9. Developed with the KLIPPEL suite.
Size

Driver Design

Power Handling Peak

Power Handling RMS

Cone Material

Frequency Response
